Industrial Communication Products

Waterproof case, far infrared, RS485

Release time:2021-01-19 丨 Reading times:828

{Features}

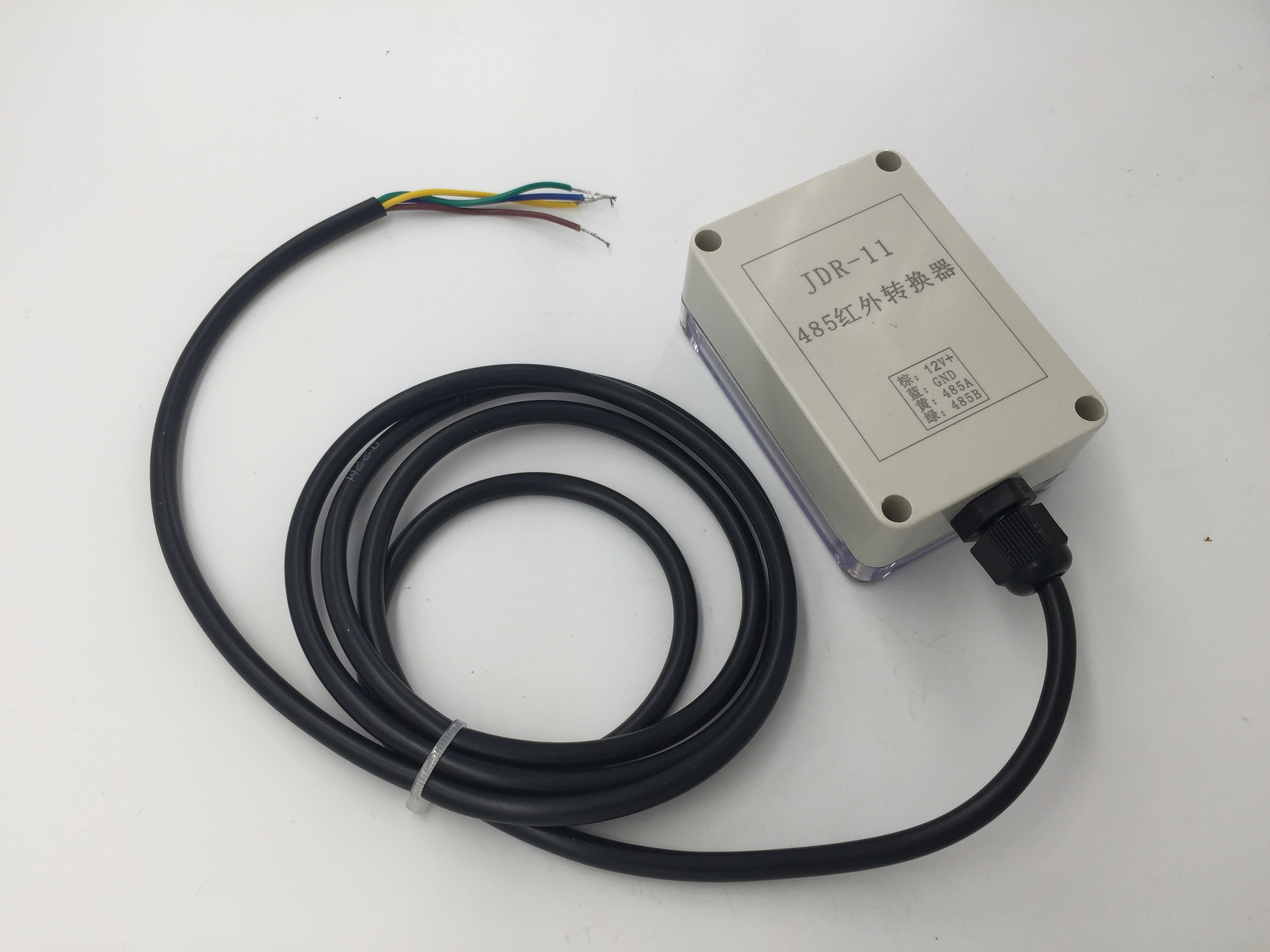

This product is an infrared transceiver based on 38kHz signal modulation and demodulation. Adopting the principle of full hardware conversion, the device is only a transparent communication channel for converting infrared signals and RS485 signals, without any protocol conversion function, so it supports full protocol operation. The equipment provides DC power supply mode. DC power supply can choose 5V power supply or 9V-24V (equipment nominal 12V) power supply, which can be customized according to customers. The JDR-11 shell is used with IP54 and above waterproof protection ability, which is more suitable for indoor and outdoor use.

{Performance}
Modulation and demodulation signal frequency: 38kHz

Communication rate: up to 2400bps (recommended to use 1200bps for the best communication effect)

Communication distance and angle: ≤6m, ≤15°


Power consumption: ≤0.5W

Climatic conditions:

Working temperature: 0℃~+50℃

Storage temperature: -10℃~+60℃

Relative humidity: <75%

Size: 83mm×58mm×34mm


{Wiring diagram}




{Outline drawing}



{Dimensions}
